1.1 Overview
4G LTE VoIP gateway ETS32x4G is newly designed IP to 4G LTE gateway supporting maximum 32 ports 128SIMs
of 4G Volte Voice interface, it can effectively realize the smooth transition between 4G and VoIP network.
Compact cost effective design and system architecture of 4G LTE Gateway ETS-32x4G provides customer
satisfaction in high quality,good performance and system reliance.
Mostly important,4G LTE Gateway ETS-32x4G features with new functions such as multi- SIM rotation, Human
behaviour,BTS rotation,proxy server encryption for anti IP block, ETS bandwidth optimization (SBO),
Auto IMEI change and generation,auto activation SIM card etc.
This product uses the state-of-art technology voice compression and Smart QoS of ETS to maintain the
maximum voice quality under fast internet line and slow internet line as well, thus It is an ideal gateway for
heavy duty VoIP call termination (VoIP to 4G) and Origination (4G to VoIP), it is fully compatible with
leading soft switch and SIP server.
1.2 Main features
Support 32 4G ports, up to 32 concurrent calls (1 Ports 4 SIM card ,total 128 SIM card)
Support 4G LTE Bands as below:
LTE-FDD:B1/B3/B7/B8/B20/B28A ; LTE-TDD: B38/B40/B41 - for EU, Middle East And Africa
LTE-FDD:B2/B4/B5/B12/B13/B14/B66/ B71; LTE-TDD: / - for North America
LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28; LTE-TDD: B40 - for Latin America/ Australia/New Zealand
3G/UMTS: 850/900/1800/1900Mhz optional
GSM: Quad-band: 900/850/1800/1900Mhz
Support multi-sim card rotation to avoid sim block
Support Human behaviour function
Support SBO (Switch Bandwidth Optimization)
Support BTS rotation and lock
Support encryption for VOS for anti-block of IP port
Support SMS Sending / batch SMS Sending / receiving
Support USSD balance inquiry
Auto activation SIM card and recharge
Support IMEI change , auto IMEI change and generation
Automatically lock/open SIM card/ port according to its balance or alarm
Support Codec: G.711a/u law, G.723.1, G726,G.729AB
Support bandwidth optimization (optional)
Sys log output by USB interface for tracking records
User friendly web management interface
HTTP Web support for configuration and upgrade
SIM swapping
HTTP Web support ASR, ACD, PDD, SIM balance enquiry
Convert the number as preset rules /Number translation
Call routing / digit map
CDR management
IVR customized
BCCH management
SIM card rotation conditions:
1) According to accumulated call duration check (talk time)
2) According to accumulated idle&talking check(use time)
3) According to accumulated calls check (call counter)
4) According to consecutive call failure check(call failure)
5) According to consecutive low-duration calls check (Low duration)
Human behaviour conditions:
1) According to accumulated call duration check (talk time)
2) According to accumulated idle&talking check(use time)
3) According to accumulated calls check (call counter)
1.3 Specifications
Interfaces
● Mobile Ports: 32 ports 4G LTE channels
● Two(2) 10/100Mbps Ethernet Interface (2xRJ45)
● USB: 1 port
Voice Processing
● Voice Codec: G.711a/u law, G.723.1, G726,G.729AB
● QoS: Diff Serve, T oS, VAD, PLC, CNG
Call Features
● Calling Type: Terminate/Originate calls
● IVR Voice Prompt: Two stage dialing, Customized IVR
● Call handling: One stage dialing, Configurable dial plan, digit map
● DTMF: RFC2833, SIP
Mobile Features
● General Feature: SMS, USSD, IMEI/PIN modify, Call minutes
restriction, Carrier select, BCCH, Reversal Polarity Network
● Network Mode: NAT router or switch mode
● Network Protocols: IP,TCP, UDP,TFTP, FTP, RTP, RTCP, ARP, RARP,ICMP Ping, NTP, SNTP, HTTP, DNS, PPPoE, DHCP
● NAT traversal: Static NAT, STUN
Protocol
● Protocol: SIP V2.0 RFC3261
● SIP Characteristics: By port/device registration, Two183 mode
Configuration Management
● Management: TFTP, HTTP, Sys log, CDR
● Web GUI: Configuration, firmware upgrade, call status, CDR ,Configuration backup/restore
Hardware Specifications
● Power Supply:AC100~240V 50/60HZ DC12V/5A
● Temperature: 0~40 ℃（Operation）, -20~80 ℃（storage）
● Humidity: 5%～90% RH,
● Power Consumption: 35W

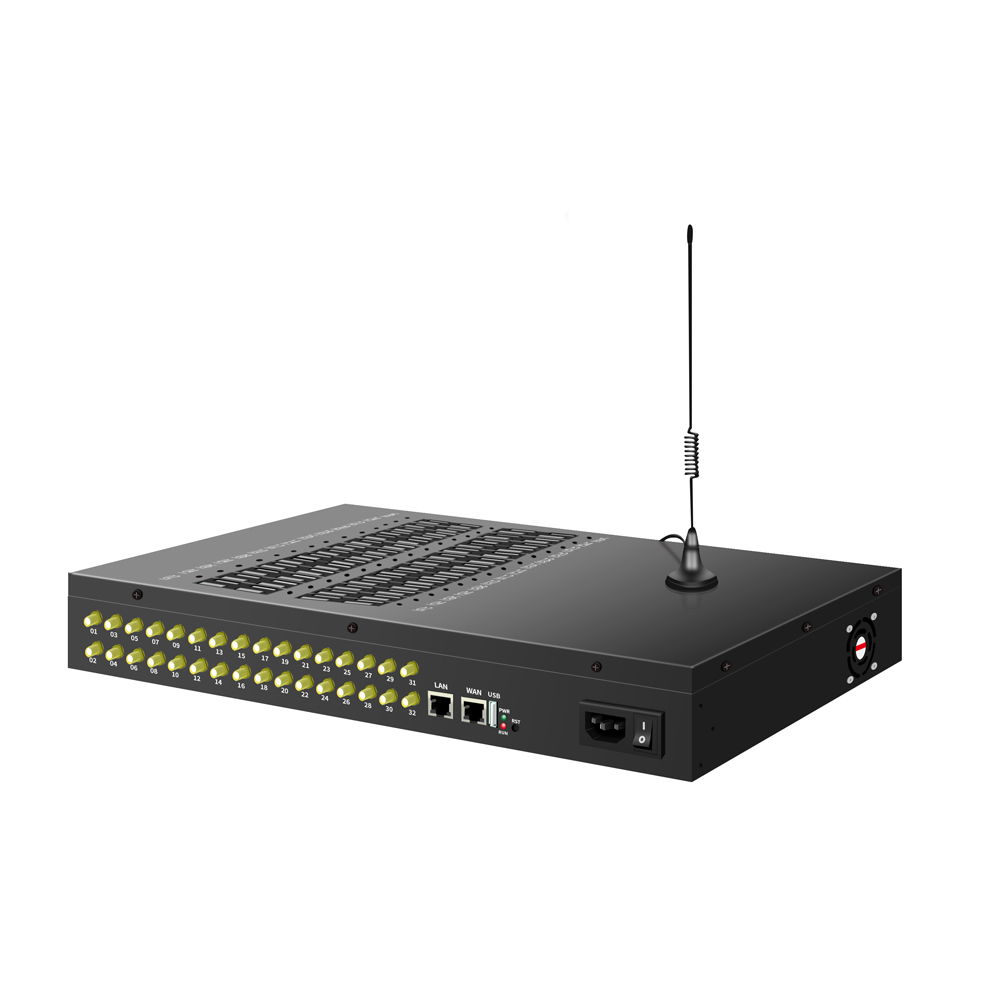

● Product Appearance: Rack mountable 1u chassis
● Product Dimensions: 44(W) x 28(D) x 6.8(H) cm
● Product Net weight: 5.0kg
● Carton box Dimensions: 52(W) x 32(D) x 13(H) mm
● Gross weight: 7.0kg
1.4 Application
International VoIP call termination
