1.1 Overview

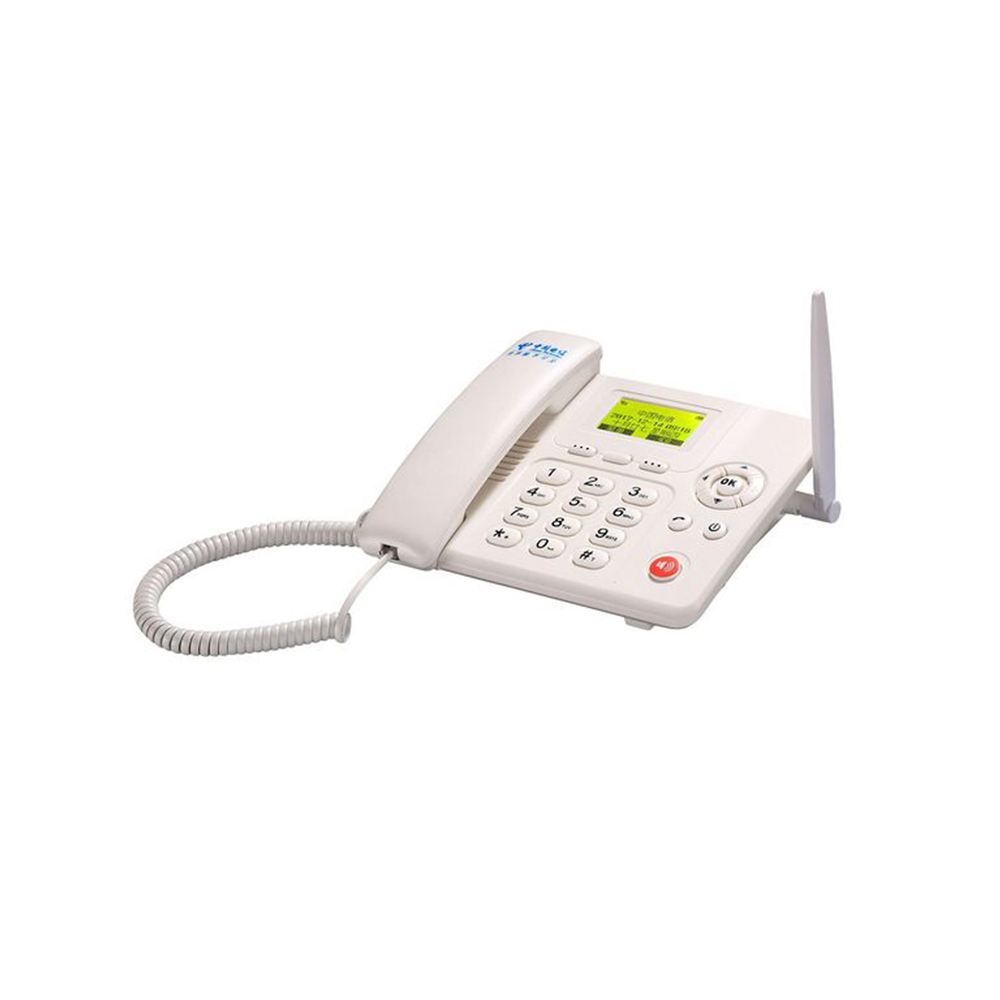

CDMA FWP 6688 is a CDMA 800Mhz fixed wireless phone, or we call it as CDMA
desktop phone,Also it supports SMS , It is designed mainly for the situations where
the traditional landline infrastructure is not available , a cheap and flexible alternative
for your voice communicaion.
1.2 Main features
Support CDMA20001X RTT standard supports high quality voice service (8Kbit / s EVRC)
Support emergency call service support caller ID, call forwarding, call waiting, call hold, three-way calling supplementary services such as short messaging
SMS and phonebook support groups large capacity phonebook groups (500)
Convenient support intelligent language (ZI) Input one-button operation
Support DTMF secondary dial-up support UIM (R-UIM) and machine card one (ROM-UIM),
One version of the software user personalization volume setting (handset volume, speaker volume, ringer volume)
Supports 10 polyphonic ringtones selection support alarm clock, calendar, world time, calculator, stopwatch, games and other application criteria? Luo NC antenna interface,
Connect the indoor antenna and the outdoor antenna provides battery backup,
The battery is low and there is an ac power source,
Can automatically charge the battery parameters can be configured to open an account and Fixed Wireless setup menu
1.3 Specifications
Working frequency: CDMA2000 1X RTT 800Mhz
Uplink: 824MHz ~ 849MHz;
Downlink: 869MHz ~ 894MHz
External Interface: USB Type A (Female);
Power Interface: Single connector;
R-UIM card interface: standard 6 PIN R-UIM card interface
Maximum transmit power: The maximum transmit power is greater than 23dBm
Maximum input power: -25dBm
receiver sensitivity: better than -104dBm
Switching Power Supply: AC: 100V ~ 240V; DC: 5V, 0.65A
Rrechargeable battery: Li-ion Battery 3.7v 1000 mAh
Maximum talk time (depending on the network environment): 3 hours (battery capacity 1000 mAh);
Maximum standby time (depending on the network environment): 90 hours (battery capacity of 1000 mAh)
Dimensions (W × D X H): 183mm × 204mm × 85mm
Weight (with battery): less than 700g (with battery)
LCD Display: 128 × 64 dot matrix
1.4 Applications:
1. For public use as payphones
2. For office and home use
3. For rural and mountainous areas
4. For mobile carriages, like ships, automobiles and trains
5. For those places where hardwire-line telephone service is unavailable
1. For public use as payphones
2. For office and home use
3. For rural and mountainous areas
4. For mobile carriages, like ships, automobiles and trains
5. For those places where hardwire-line telephone service is unavailable
1.5 Packing List
| CDMA FWP 6688 Host | 1 piece |
| Power supply | 1 piece |
| Battery 3.7v 1000mAH | 1 piece |
| User's manual | 1 piece |
| Handset | 1 piece |
| TNC antenna (Optional) | 1 piec |
HS Code: 8517129000
