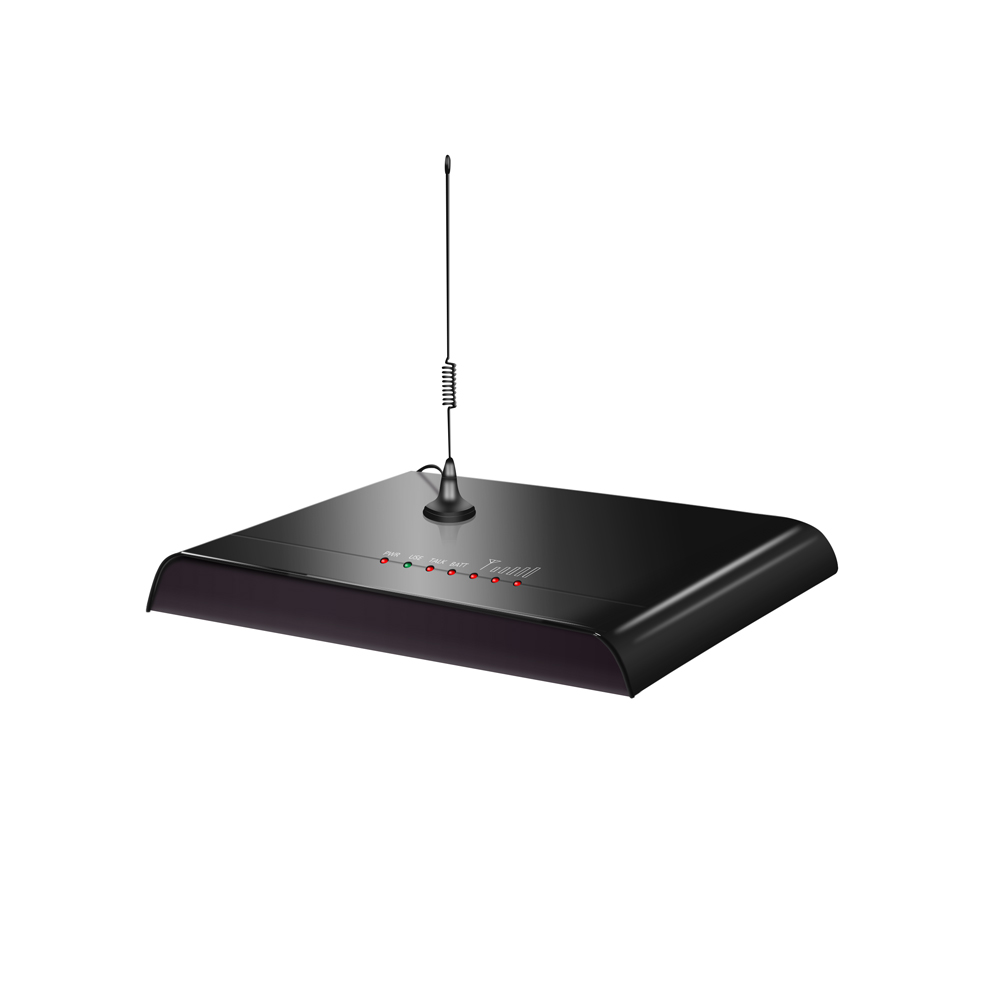

CDMA FWT-8848 800/1900Mhz

Product Name
CDMA FWT-8848 800/1900Mhz
Network
N/A
Size
N/A cm
Weight
0.00 kg
HS Code
Description
Etross-8848 is a CDMA to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out from the CDMA network. This device can both receive and make calls. So It is widely used in home &office, public phone, rural areas, steamer, railway etc.

1.1 Overview

Brand: Etross or OEM Brand

Model no.: FWT-8848

Product name: CDMA Fixed Wireless Terminal

Frequencies: CDMA 900/1800 MHz dual band



Etross-8848 is a CDMA to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out from the CDMA network. This device can both receive and make calls. So It is widely used in home &office, public phone, rural areas, steamer, railway etc.



1.2 Main features

1) Simple to install and easy to maintain

2) Steady industrial module(SIM340) and reliable design ensures good performance

3) Provides optimized circuit directly connecting the exchange device for Extensions

4) Compatible to most telephones, PBX and VoIP gateways (for call Termination)

5) Connect to Alarm systems to realize wireless alarm(for security use)

6) Strong signals with high gain antenna

7) Support SIM card (1.8V,3V)

8) Support DTMF 2'nd dialing out

9) DTMF CLIP(Caller ID display)

10) Hide subscriber caller id (been sent out)

11) Provides reversal polarity signal for metering

12) Signal indiator and power indicator and working status indicator

13) Suitable for wide voltage range and low power consumption

14) Suitable for all kinds of weather and environment

15) Locking PIN / network (optional)

16)DATA function for internet(optional)

17) Back up li-ion battery(optional)



1.3 Specifications

1) Air interface: CDMA 800/1900Mhz IS-2000

                                     800Mhz                   1900Mhz

2) Frequency ranges:

    A)RF receiving (RX):      869 ~ 894Mhz      1930 Mhz ~ 1990 Mhz

    B)RF transmitting (TX):  824 ~ 849Mhz      1850 Mhz ~ 1910 Mhz

3) Channel space: 200kHz

4) User line, bell signal: In line with GB/T15279

5) Max power: 0.25W / 0.5W

6) Consumption:

    A) Immobility: Less than 25mAh

    B) Transmission: Less than 400mAh

7) Sensitivity: -105dB

8) Dial tone frequency: 450MHz (standard)

9) Surrounding temperature: -10°C ~ +40°C

10) Relative humidity: 45% ~ 90% (without frost)

11) Atmosphere pressure: 86 ~ 106KPa

12) Environment noise: <60dB

13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /Chosen direction)

14) AC power: DC 10V - 20V

15) Input: AC100 - 230V, 50 / 60Hz

16) Output: 12V 1A

17) Switching type / transformer type AC adapter (optional)

18) Connector of power: US or European type

19) Dimensions (L x W x H) (average): 185 x 135 x 22mm

20) Weight:

     A) FWT: 400g

     B) Full set with AC adapter, antenna and box: 700g

21) Colors: White/grey/black (optional)

22) Connection mode: RJ-11 phone sockets

23) Antenna connection: SMA antenna connection



1.4 Standard Component



Item

Qty

Remarks

CDMA FWT 8848

1


User's Manual

1

Printed

Antenna

1

3 metre antenna

Power Supply

1

 Input: AC100 - 230V, 50 / 60Hz , Output: 12V 1A



Packing

Inner box MEAS


G.W./unit

 0.75kg

Carton MEAS

55*34.5*32.5cm

G.W.

16kg

PCS/CTN

20pcs
